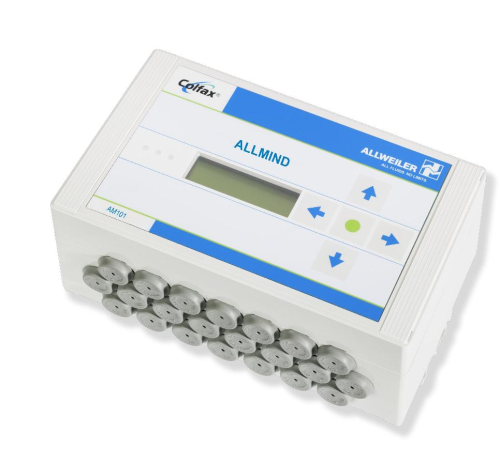

The Allmind system is made up of modules that can be combined as needed in order to adapt to individualised processes. It features a hardware-based platform that can handle relatively simple condition monitoring along with sophisticated monitoring and control activities involving multiple pumps. The system can monitor pressure, temperature, leakage, vibration, and output as well as activate PID controllers. Each pump can be individually equipped with speed control and a frequency converter. The Allmind system can be configured to trigger specific reactions for individual pumps, such as reducing speed and continuing operation at a safe operating point. The intelligent pump monitoring system allows operators to plan ahead for maintenance and repairs, thereby avoiding unplanned production downtime and consequential damages. The system stores all sensor values and makes them available for evaluation purposes. An integrated assistant facilitates start-up without special technical knowledge and the system also includes IP 54 protection and flexible installation options (on a wall or DIN rails). Pre-configured settings for specific processes, individualized optimization, and straightforward retrofitting of existing systems are also possible.
