Wilden has released its new bolted plastic Equalizer Surge Dampeners – Integrated SD Series (ISD).
The new ISD Series dampeners have been engineered to help extend the life and reduce the noise of Wilden 13 mm (half inch) and 25 mm (1 inch) Pro-Flo Series bolted plastic air-operated double-diaphragm (AODD) pumps while providing users with convenient installation and use.

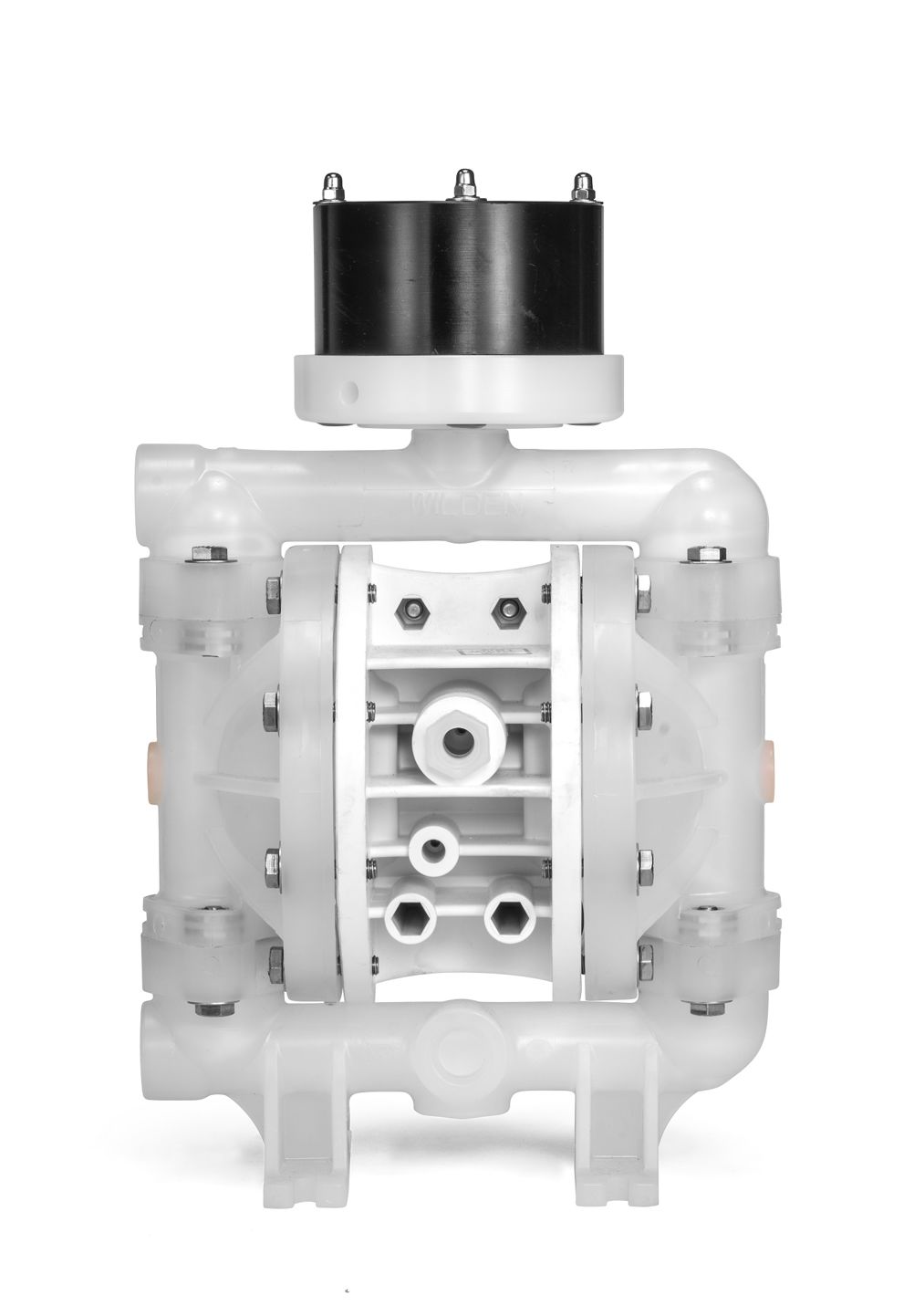

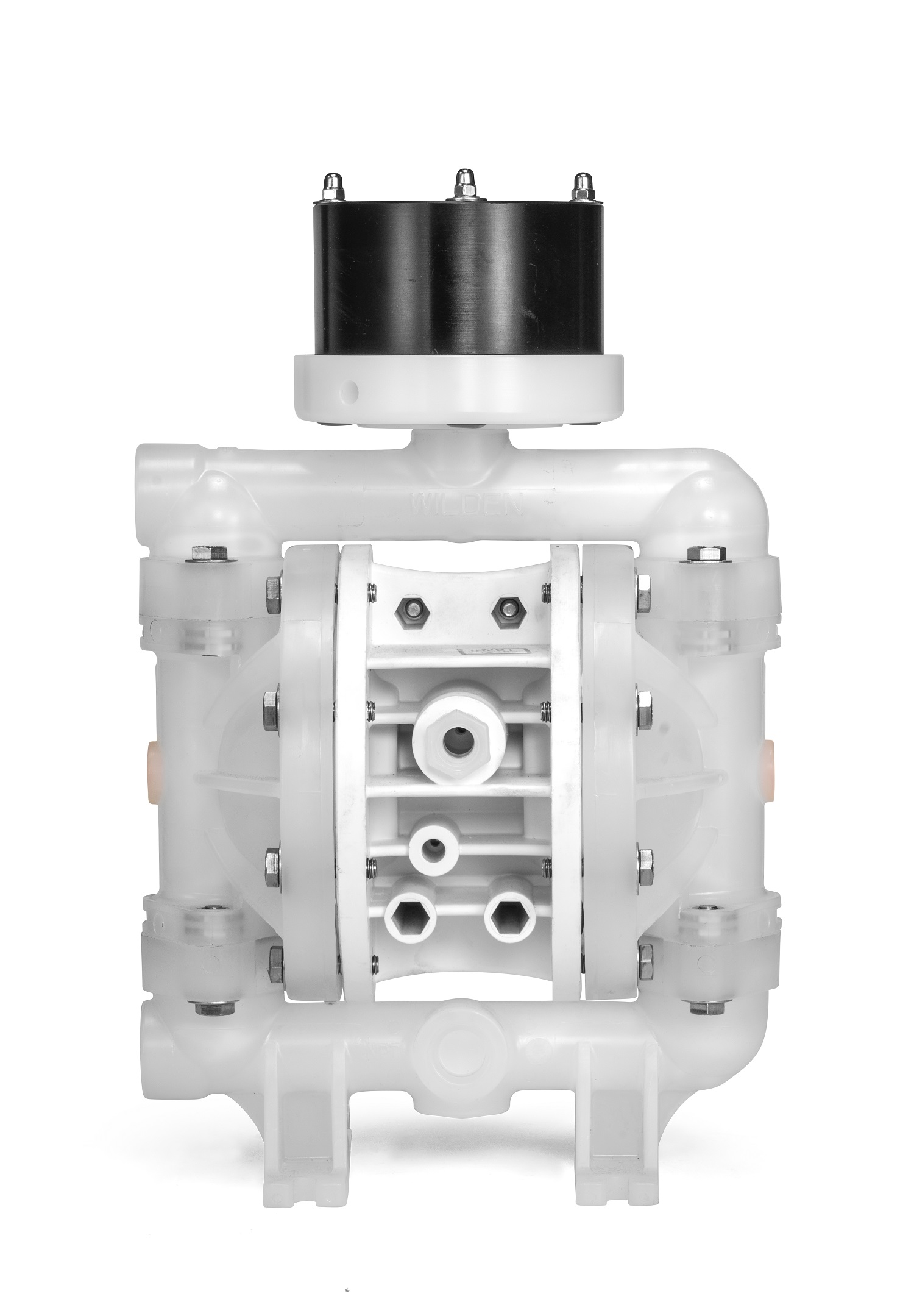

Wilden ISD Series dampeners have an integrated design that allows them to be directly incorporated in the Pro-Flo Series bolted plastic manifold design. They can be used on Wilden pumps without any additional hardware. No additional connecting elements or piping changes are needed to install these dampeners.
The dampeners are available in 13 mm (half inch) and 25 mm (1 inch) sizes in Polyethylene construction, with PTFE and EPDM diaphragm material options. They feature temperature ranges from -51°C to 138°C (-60°F to 280°F) for EPDM and 10°C to 137°C (14°F to 280°F) for PTFE. With a maximum working pressure of 100 psi, they are designed for paints and coatings, chemical, hygienic, and general industrial applications.
